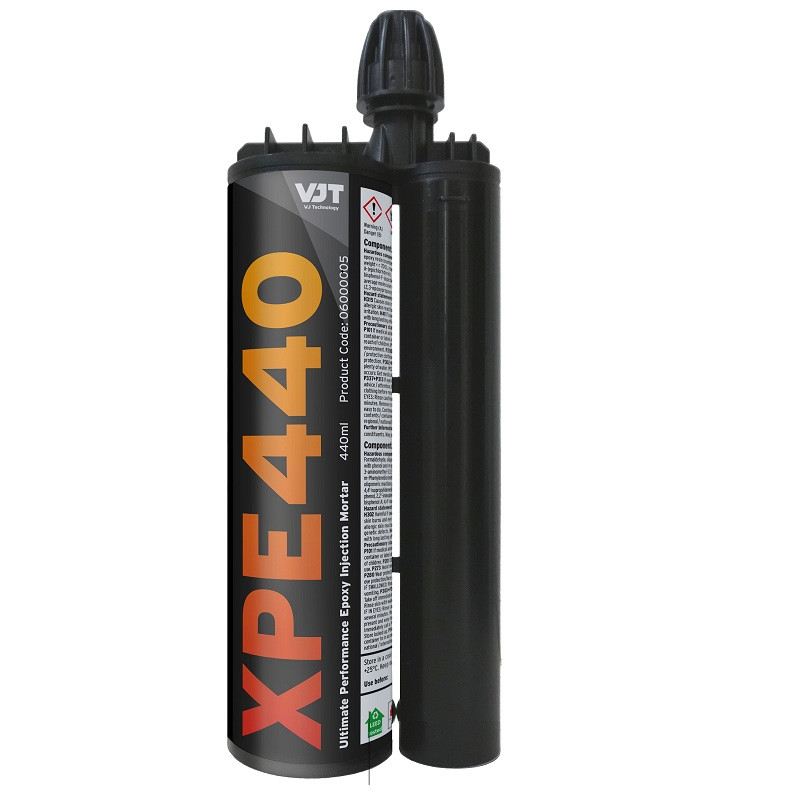

XPE440 is VJT's Pure Epoxy Resin Injection Mortar

XPE440 is our highest performance, pure epoxy injection mortar with approvals for
anchoring and rebar connections. This product is used in conjunction with a
hand, battery or pneumatic tool and static mixer nozzle.

XPE440 consists of 2 components, resin and hardener, which are stored in
separate compartments. These are mixed when extruded through the mixer
nozzle and allow the mortar to set. Cartridges may be reused up to end of shelf
life by replacing the static mixer nozzle or resealing the cap.

Usage/Purpose
XPE440 is suitable for anchoring of façades, roofs, wood construction, metal
profiles, columns, beams, consoles, railings, sanitary devices, cable trays,
piping, post-installed rebar connections and more. Especially suitable for
applications with deeper embedment depths due to high flow properties.

EPD Declaration number: EPD-VJT-20240220-CBA1-EN

CCPI verified product information: Verification Number 002400004/0925

Key Benefits

• UKTA and ETA for cracked and non-cracked concrete, C20/25 to C50/60
• UKTA and ETA for post-installed rebar connections
• ETA for post-installed rebar connection with improved bond-splitting behaviour under static loading (TR069)
• Approved for seismic performance categories C1 and C2
• Anchors designed according to EN 1992-4 standard (Eurocode 2 Part 4) for maximum safety and efficiency
• Additional provisions within in the UKTA and ETA for 100 year working life
• Compatible with hammer or diamond drilled holes
• High load capacity in cracked and non-cracked concrete
• Suitable for dry and wet concrete including flooded holes (bonded anchors)
• Suitable for overhead application
• Fire rating resistance ~ R120
• NSF approval for potable water
• High chemical resistance
• Low odour
• Small allowable edge distance and anchor spacing

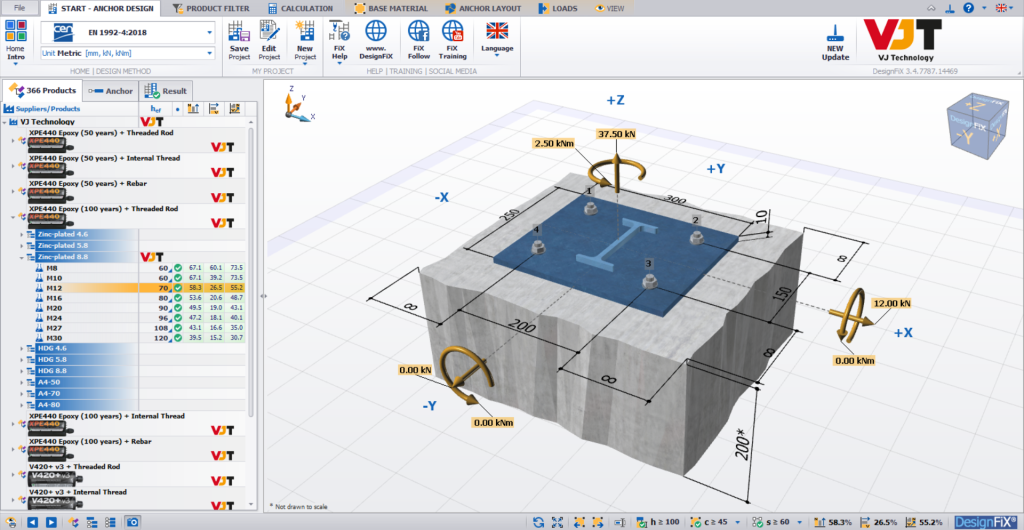

• Design check can be performed using free VJT DesignFiX software -
• alternatively contact [email protected] to model applications

XPE440 spare mixer nozzles - 06100390

The term ultimate performance is a product name and bears no reflection to the properties / performance of the product
