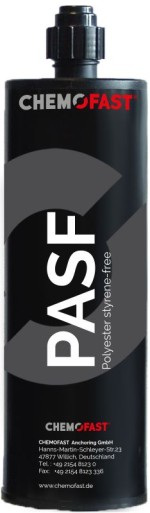

PASF Polyester Resin Injection Mortar Styrene-Free

Product description
The PASF is a 2-component reaction resin mortar based on a styrenefree polyester and will be delivered in a 2-C cartridge (standard cartridge;
foil tube cartridge) system. This product may be used in combination of a hand-, battery-, or pneumatic tool and a static mixer. It was designed
as a costeffective alternative for the anchoring of threaded rods for approved applications. By using a perforated sleeve, an easy and save application in hollow bricks is guaranteed.

The PASF product is characterised by manifold applications with an ambiance temperature up to 80°C.

Properties and benefits

• European Technical Assessment for injection anchors for use in masonry acc. to EAD 330076-00-0604: ETA -18/0833
• European Technical Assessment for bonded fasteners acc. to EAD 330499-01-0601 (Option 7): ETA -11/0285
• Suitable for attachment points with small edge- and axial distances due to an anchoring free of expansion forces
• Reduced chemical resistance
• High bending and pressure strength
• Cartridge can be reused up to the end of the shelf life by replacing the static mixer or resealing cartridge with the sealing cap

Applications samples
Suitable for the fixation of facades, roofs, wood constructions, metal constructions; metal profils, columns, beams, consoles, railings, sanitary devices, cable trays, piping, etc.
