Item No. 04860275
ETA-19/0520 Document? ETA-19/0520 DoP?
ETA-20/0897 Document? ETA-20/0897 DoP?
Load table permissible loads of a single anchor in normal concrete of strength class C20/25?
Load table design values for cyclic fatigue loading of a single anchor in cracked or non-cracked normal concrete of strength class C20/25?

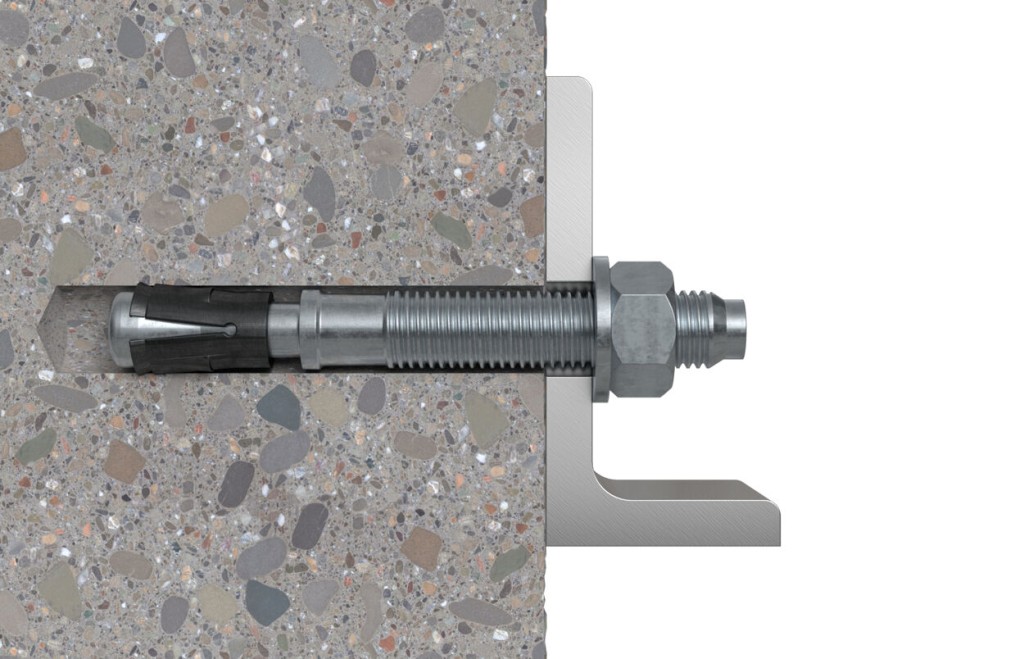

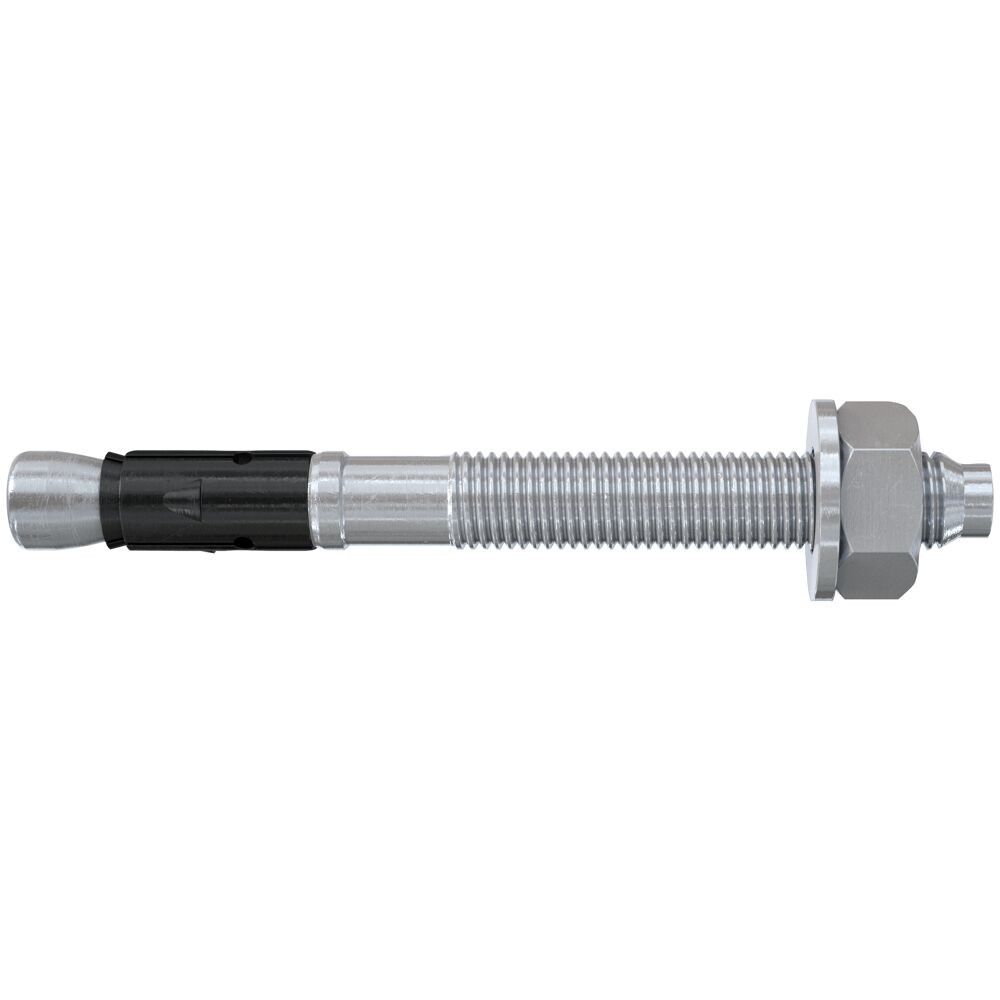

The fischer bolt anchor FAZ II Plus is the steel anchor for the highest demands with high tensile strengths and a wide range of applications. Heavy loads can be secured in cracked concrete using the steel anchor. The FAZ II Plus is easier and faster to set due to the elimination of drill hole cleaning (M8-M24). The tried-and-tested expansion clip safely introduces the loads into the concrete and enables an immediately loadable, high load-bearing capacity even with dynamic applications. For example, the steel anchor is ideal for the anchoring of railings, cable trays, consoles and for dynamic loads such as lifting platforms, conveyor belts and pumps.
Top Features
