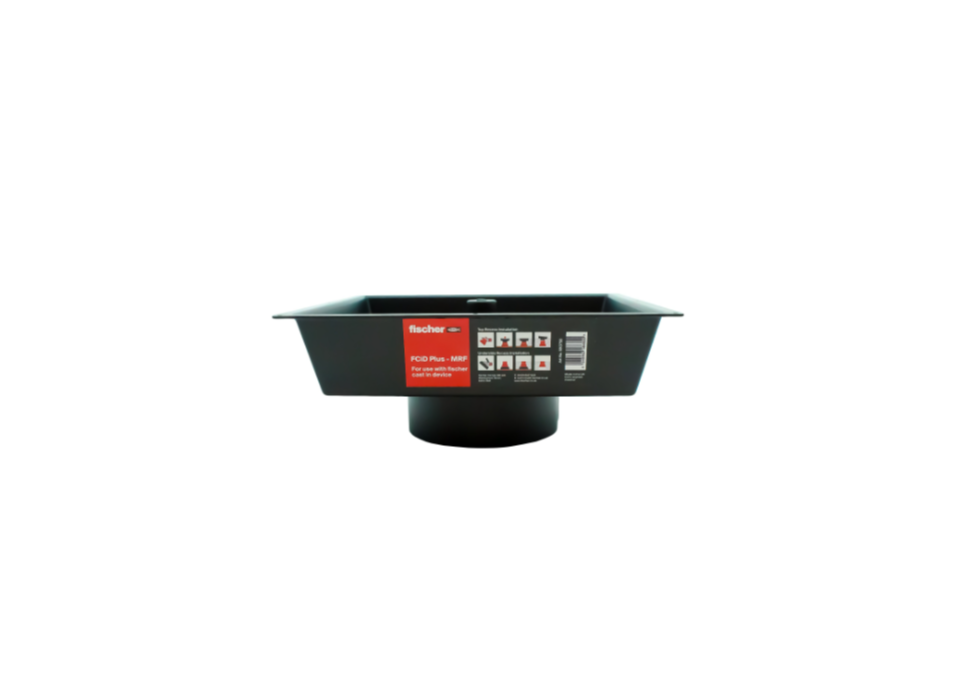

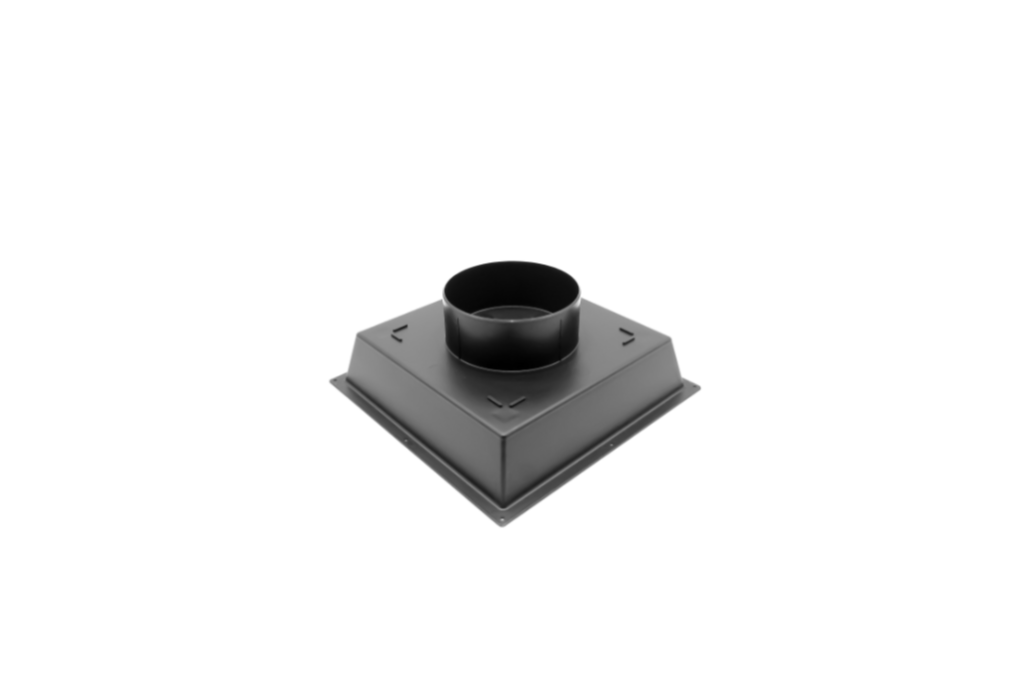

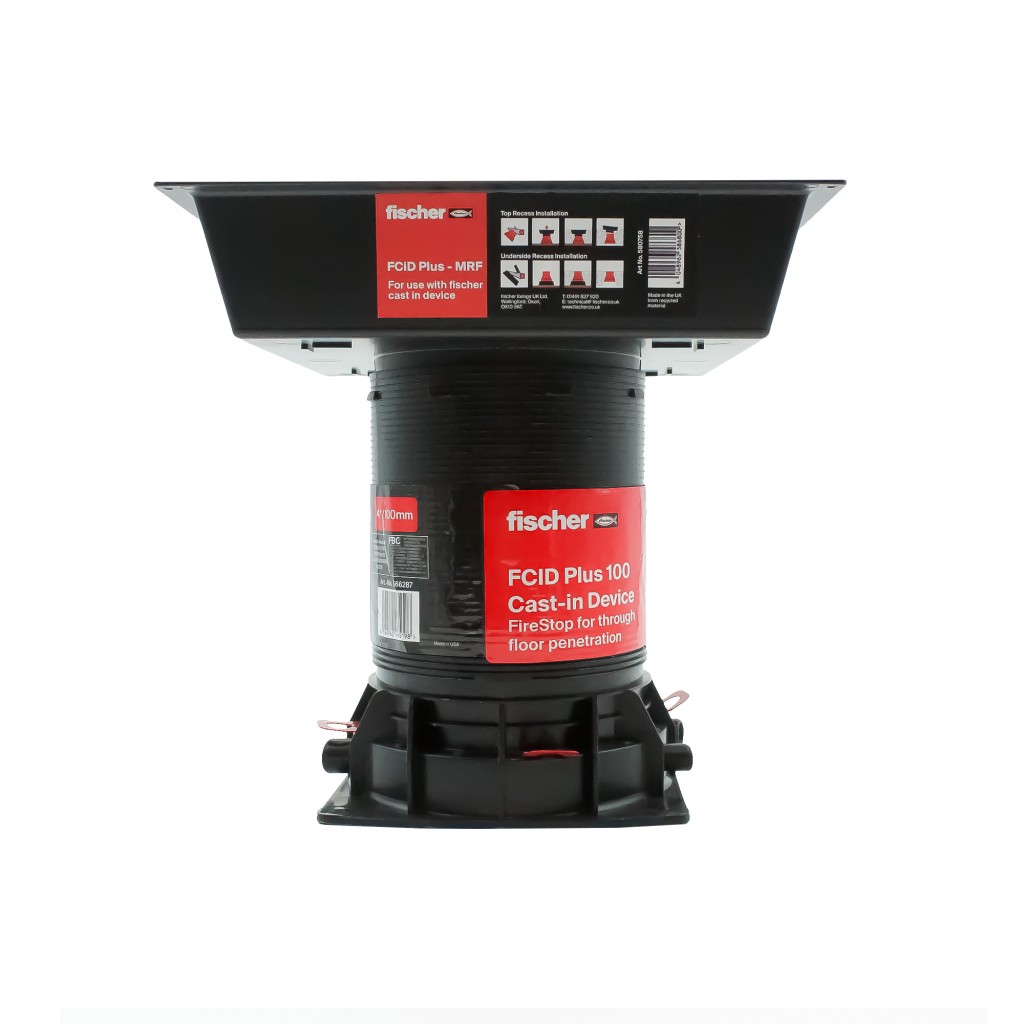

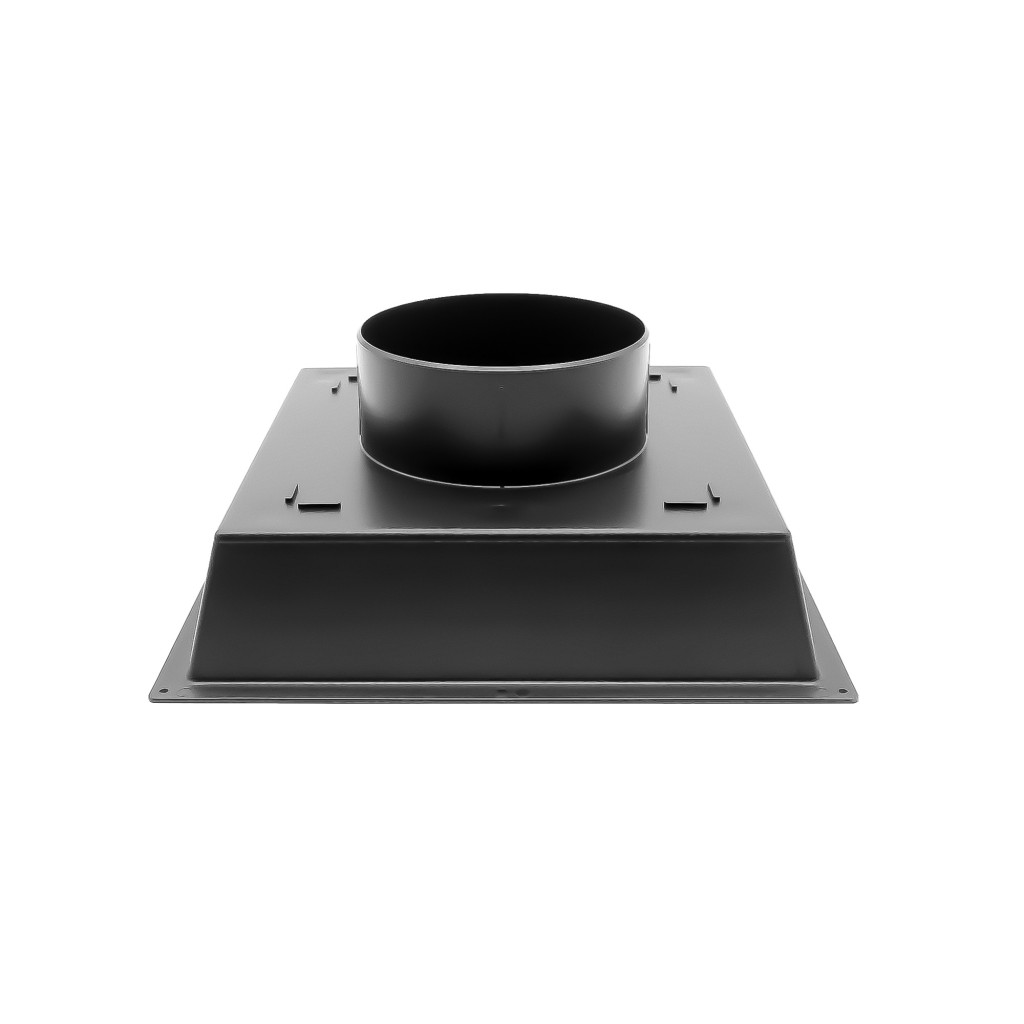

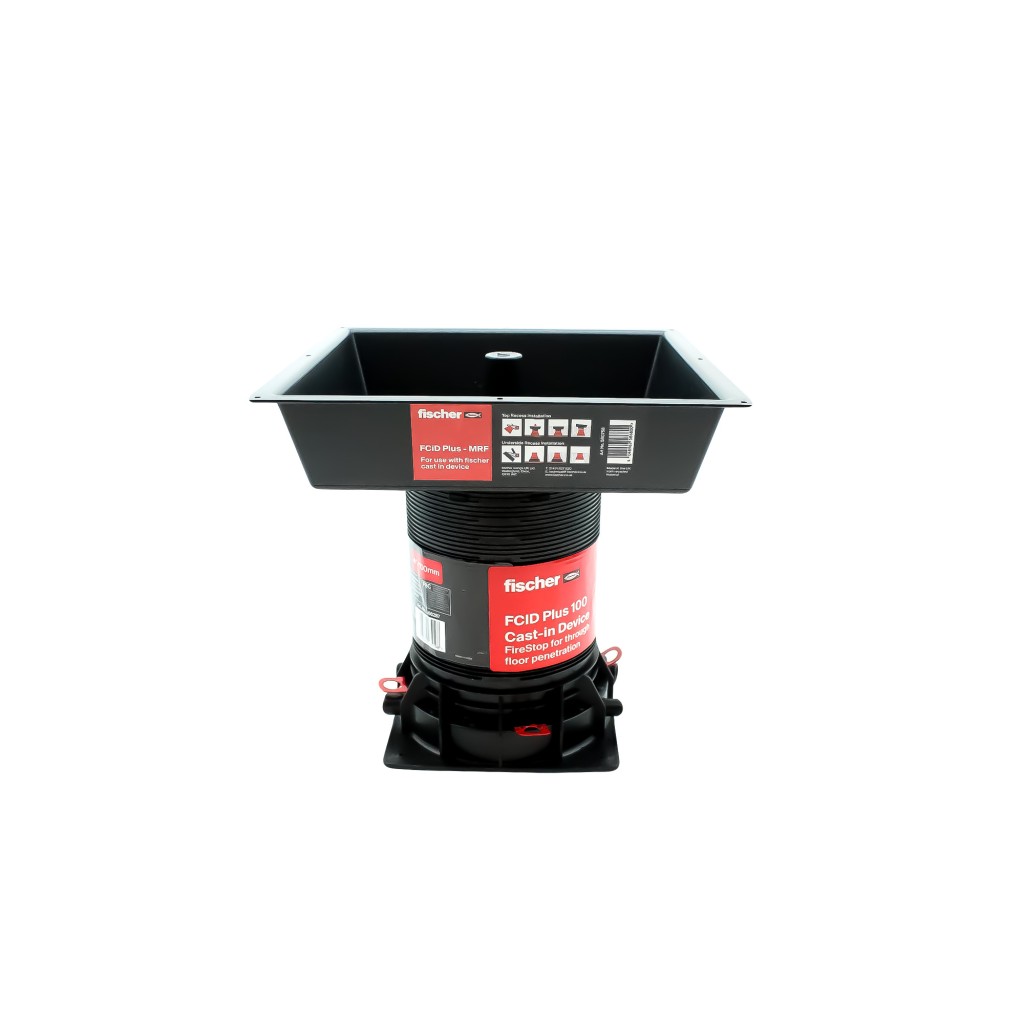

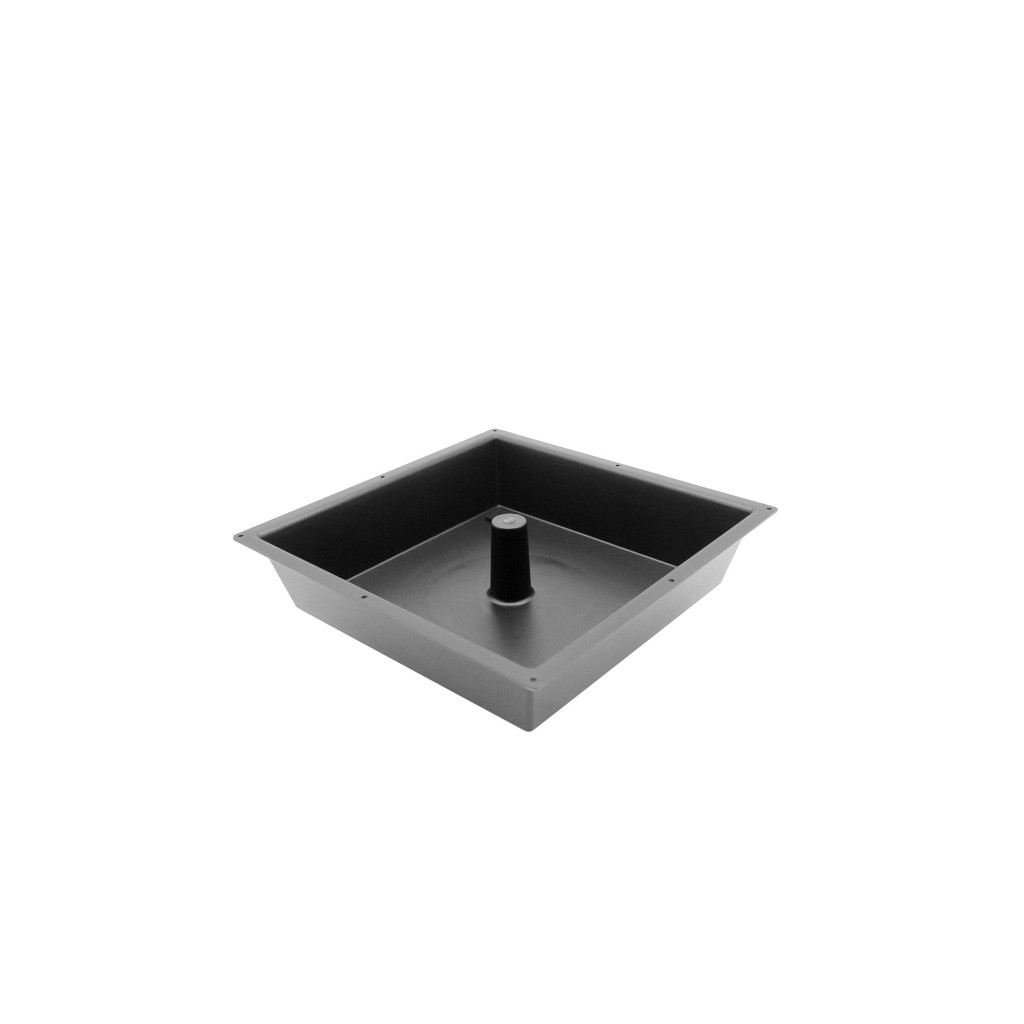

fischer Cast in Device FCID-MRF Manifold Recess Former (Art.-No. 517846)

The advantages / Product description

Fast and efficient solution for forming service penetrations through concrete floors.

Advantages

• Quick installation
• Watertight seal
• Higher tolerance
• Easily extendable
• Wider base for further connections
• No further collars or wraps required
• Reduce working at heights
• Cost saving
• Reduced foot plate
• Eco-friendly extension tube
• Closer proximity positioning
• Free of asbestos, solvents and any hazardous ingredients.

fischer FCID Cast-In Device is a pass through system which is constructed from a highly resilient polypropylene material and contains a powerful Intumescent graphite band which has been designed for non-metallic pipe applications in reinforced cast concrete slabs and some prefabricated slab systems. (Subject to design)

Applications

• Sealing and firestopping PVC and HDPE pipes up to 6˝ (150 mm)
• Forms holes up to 8˝ (200mm) thick concrete floors. In combination with extension pieces up to additional 4" (100mm) possible.
• FCID Plus creates recesses in slabs for lower positioning of soil
• Manifold units in wet room applications

Building materials

• Reinforced cast concrete slabs
• Some prefabricated slab systems (subject to design)

You can find detailed information on building materials in the registration document.
