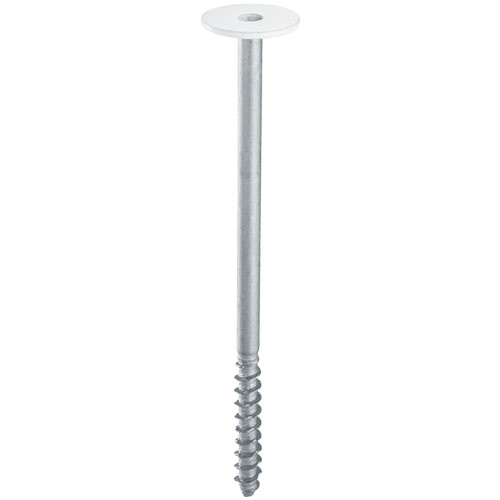

DDS-Z 24 / 7.3 RAL 9002

Item No. 13665480

Please login to see prices.

Description

Applications
- For a secure fastening of ceiling and acoustic boards
- With German DIBt approval
- Recommended substrate: Concrete
Properties
- For installation in cracked and non-cracked concrete
- Steel screw with duplex coating and self-tapping thread for reliable fastening
- Corrosion resistance classification C1-C3
- Easy installation: drill, fasten, done
- Minimal embedment depth
- Standard screw head colour: white
- Special service: coloured lacquering of the fastener heads
- Technical specifications
  - Head diameter: 24 mm
  - Drill hole diameter: 6 mm
  - Drill hole depth h1 ≥: 35mm
  - Embedment depth hef≥: 25 mm
  - Screw drive: TORX T-30
  - Recommended substrate: Concrete
  - Building material class: A2
  - Corrosion resistance classification: C1 - C3
  - DIBt approval: Z-21.8-1980
