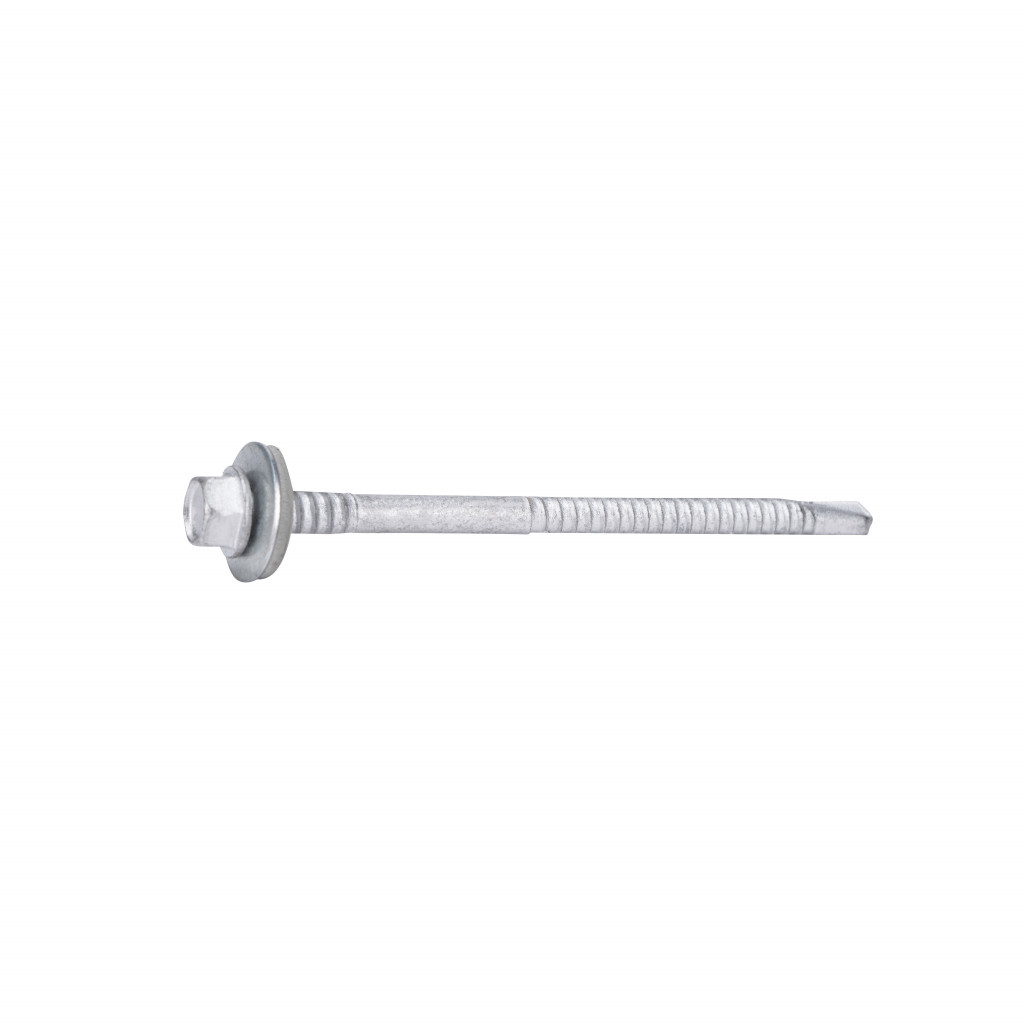

DrillTech CSLSC Composite Panel Self Drilling Screw Carbon Steel

Typical Applications

• Fixing composite panels to light-medium steel purlins and sections.

• Fixing composite panels to timber.

• Fastening liner panels to steel and timber substructure.

Features & Benefits

• Drills 1.2-5mm thick steel

• C1022 case-hardened carbon steel

• 1000 hour silver ruspert finish

• Available with a 16mm bonded EPDM washer

Typical Applications

•    Fixing composite panels to light-medium steel purlins and sections.
•    Fastening liner panels to steel and timber substructure.
•    Centre fixing insulation back to steel frame

Features and Benefits

• Drills 1.2-5mm thick steel
• Grade A2 (304) stainless steel with case-hardened carbon steel drill point
• Available with a 16mm bonded EPDM washer

Installation Tips

• For optimal Install use a screwgun with depth setting nosepiece and RPM range of 1500-2200
• Avoid overdriving/overtightening
• Fastener is fully seated when head is in contact with material surface, bonded washers should not compress >66% of original thickness
• A minimum of 3 threads must protrude through the rear of the metal structure

Typical Applications

• Fixing composite panels to light-medium steel purlins and sections.

• Fixing composite panels to timber.

• Fastening liner panels to steel and timber substructure.

Features & Benefits

• Drills 1.2-5mm thick steel

• C1022 case-hardened carbon steel

• 1000 hour silver ruspert finish

• Available with a 16mm bonded EPDM washer

Typical Applications

• Fixing composite panels to light-medium steel purlins and sections.

• Fixing composite panels to timber.

• Fastening liner panels to steel and timber substructure.

Features & Benefits

• Drills 1.2-5mm thick steel

• C1022 case-hardened carbon steel

• 1000 hour silver ruspert finish

• Available with a 16mm bonded EPDM washer

Typical Applications

• Fixing composite panels to light-medium steel purlins and sections.

• Fixing composite panels to timber.

• Fastening liner panels to steel and timber substructure.

Features & Benefits

• Drills 1.2-5mm thick steel

• C1022 case-hardened carbon steel

• 1000 hour silver ruspert finish

• Available with a 16mm bonded EPDM washer

Typical Applications

• Fixing composite panels to light-medium steel purlins and sections.

• Fixing composite panels to timber.

• Fastening liner panels to steel and timber substructure.

Features & Benefits

• Drills 1.2-5mm thick steel

• C1022 case-hardened carbon steel

• 1000 hour silver ruspert finish

• Available with a 16mm bonded EPDM washer

Typical Applications

• Fixing composite panels to light-medium steel purlins and sections.

• Fixing composite panels to timber.

• Fastening liner panels to steel and timber substructure.

Features & Benefits

• Drills 1.2-5mm thick steel

• C1022 case-hardened carbon steel

• 1000 hour silver ruspert finish

• Available with a 16mm bonded EPDM washer

Typical Applications

• Fixing composite panels to light-medium steel purlins and sections.

• Fixing composite panels to timber.

• Fastening liner panels to steel and timber substructure.

Features & Benefits

• Drills 1.2-5mm thick steel

• C1022 case-hardened carbon steel

• 1000 hour silver ruspert finish

• Available with a 16mm bonded EPDM washer

Typical Applications

• Fixing composite panels to light-medium steel purlins and sections.

• Fixing composite panels to timber.

• Fastening liner panels to steel and timber substructure.

Features & Benefits

• Drills 1.2-5mm thick steel

• C1022 case-hardened carbon steel

• 1000 hour silver ruspert finish

• Available with a 16mm bonded EPDM washer

Typical Applications

• Fixing composite panels to light-medium steel purlins and sections.

• Fixing composite panels to timber.

• Fastening liner panels to steel and timber substructure.

Features & Benefits

• Drills 1.2-5mm thick steel

• C1022 case-hardened carbon steel

• 1000 hour silver ruspert finish

• Available with a 16mm bonded EPDM washer

Typical Applications

• Fixing composite panels to light-medium steel purlins and sections.

• Fixing composite panels to timber.

• Fastening liner panels to steel and timber substructure.

Features & Benefits

• Drills 1.2-5mm thick steel

• C1022 case-hardened carbon steel

• 1000 hour silver ruspert finish

• Available with a 16mm bonded EPDM washer

Typical Applications

• Fixing composite panels to light-medium steel purlins and sections.

• Fixing composite panels to timber.

• Fastening liner panels to steel and timber substructure.

Features & Benefits

• Drills 1.2-5mm thick steel

• C1022 case-hardened carbon steel

• 1000 hour silver ruspert finish

• Available with a 16mm bonded EPDM washer

Typical Applications

• Fixing composite panels to light-medium steel purlins and sections.

• Fixing composite panels to timber.

• Fastening liner panels to steel and timber substructure.

Features & Benefits

• Drills 1.2-5mm thick steel

• C1022 case-hardened carbon steel

• 1000 hour silver ruspert finish

• Available with a 16mm bonded EPDM washer

Typical Applications

• Fixing composite panels to light-medium steel purlins and sections.

• Fixing composite panels to timber.

• Fastening liner panels to steel and timber substructure.

Features & Benefits

• Drills 1.2-5mm thick steel

• C1022 case-hardened carbon steel

• 1000 hour silver ruspert finish

• Available with a 16mm bonded EPDM washer

Typical Applications

• Fixing composite panels to light-medium steel purlins and sections.

• Fixing composite panels to timber.

• Fastening liner panels to steel and timber substructure.

Features & Benefits

• Drills 1.2-5mm thick steel

• C1022 case-hardened carbon steel

• 1000 hour silver ruspert finish

• Available with a 16mm bonded EPDM washer

Typical Applications

• Fixing composite panels to light-medium steel purlins and sections.

• Fixing composite panels to timber.

• Fastening liner panels to steel and timber substructure.

Features & Benefits

• Drills 1.2-5mm thick steel

• C1022 case-hardened carbon steel

• 1000 hour silver ruspert finish

• Available with a 16mm bonded EPDM washer

Typical Applications

• Fixing composite panels to light-medium steel purlins and sections.

• Fixing composite panels to timber.

• Fastening liner panels to steel and timber substructure.

Features & Benefits

• Drills 1.2-5mm thick steel

• C1022 case-hardened carbon steel

• 1000 hour silver ruspert finish

• Available with a 16mm bonded EPDM washer

Typical Applications

• Fixing composite panels to light-medium steel purlins and sections.

• Fixing composite panels to timber.

• Fastening liner panels to steel and timber substructure.

Features & Benefits

• Drills 1.2-5mm thick steel

• C1022 case-hardened carbon steel

• 1000 hour silver ruspert finish

• Available with a 16mm bonded EPDM washer

Typical Applications

• Fixing composite panels to light-medium steel purlins and sections.

• Fixing composite panels to timber.

• Fastening liner panels to steel and timber substructure.

Features & Benefits

• Drills 1.2-5mm thick steel

• C1022 case-hardened carbon steel

• 1000 hour silver ruspert finish

• Available with a 16mm bonded EPDM washer

Typical Applications

•    Fixing composite panels to light-medium steel purlins and sections.
•    Fastening liner panels to steel and timber substructure.
•    Centre fixing insulation back to steel frame

Features and Benefits

• Drills 1.2-5mm thick steel
• Grade A2 (304) stainless steel with case-hardened carbon steel drill point
• Available with a 16mm bonded EPDM washer

Installation Tips

• For optimal Install use a screwgun with depth setting nosepiece and RPM range of 1500-2200
• Avoid overdriving/overtightening
• Fastener is fully seated when head is in contact with material surface, bonded washers should not compress >66% of original thickness
• A minimum of 3 threads must protrude through the rear of the metal structure
